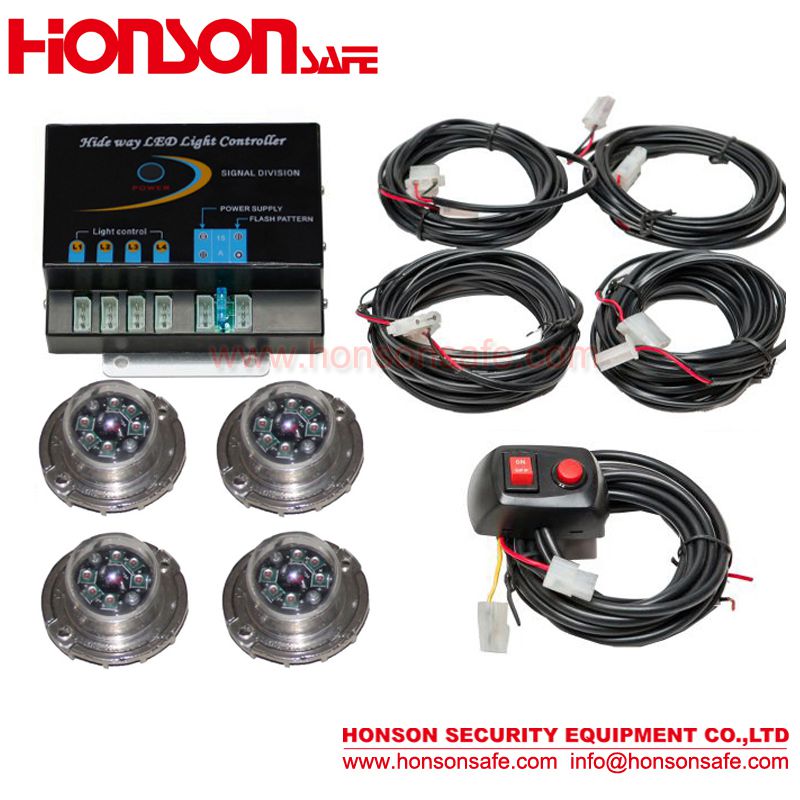

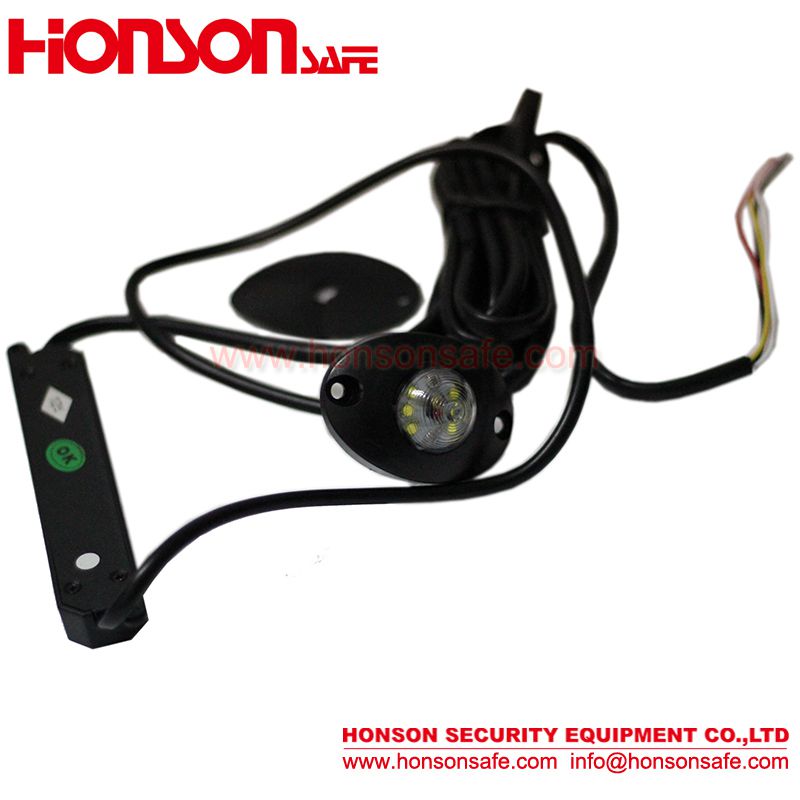

6W or 18W High Bright LED Hideaway Strobe Lights kit for Tow Truck Security and Emergency Vehicle HA-61
Model: HA-61
Min.Order Quantity:30PCS
Supply Ability:2000 Set/Sets per Week
Port:Ningbo/ShangHai
Payment Terms:T/T,Western Union,PayPal
6*3W or 1W LEDs per unit,18 Flash Patterns, Inline flasher,split and Solid Alternating Flash Patterns, Multi types control box Optional According to the quantity of light modules, LED Module mounts on any surface, even inside the headlights of any vehicle.
- Product Details
- Vido
Product Description
- Type:LED Vehicle LED Hideaway
- Brand Name:HONSON
- Model Number: HA-61
- Voltage:DC12V/24V/DC10-30V
- Light source: 1W/3W LEDS
- LED color:red/blue/amber/white/green
- Cover color:red/blue/amber/white/green
- Flash pattern:18 kinds or Customized
- Lightheads:4/6/8/10/12 Modules Optional
- Lighthead:8LED
- Switch:wire trigger flash and ON/OFF
- Temperature:-40 to +65 degree
- Waterproof:IP67(Module)
- Certification:CE ROHS
- Installation:Bolt fixing
Product Advantages
1. 6*3W or 1W LEDs per unit
2. 18 Flash Patterns, Inline flasher,split and Solid Alternating Flash Patterns.
3. Multi types control box Optional According to the quantity of light modules.
4. LED Module mounts on any surface, even inside the headlights of any vehicle.
5. LED/Cover: Amber/Red/Blue/White/Green are available.
6. Thermal dissipation is optimized through the use of an advanced heat management system.
7. Materials: PC Cover, PCB, Silicon gel and aluminum base.
8. Working Temperature -40 to +65 degree making it Stable and reliable.
9. All components are encapsulated, Waterproof is IP68.
10.Our company promises: 3 Year Warranty to solve your worries
11.Installation: Surface bolt fixing, Mounted with brackets, Mounts in a 1" hole or placed directly inside a headlight van.
12.It is fantastic value and a go-to solution for any public service vehicles.

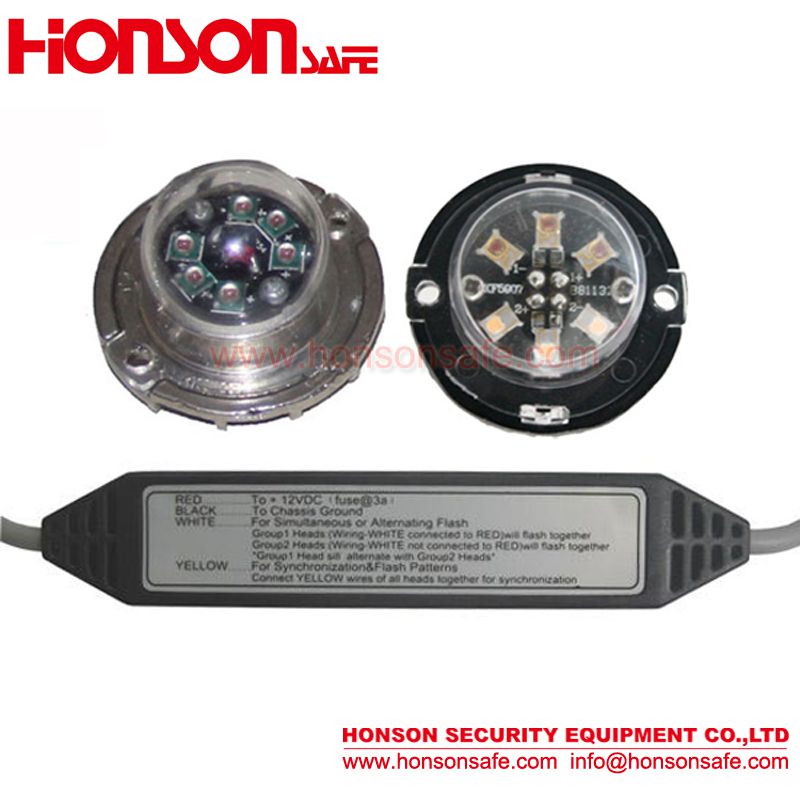

Wiring of the LED Hideaway:
RED: +V Connect to +V through an ON/OFF switch. The use of a fuse located close to the voltage source is recommended.
BLACK: - GROUND Connect to Ground vehicle chassis
YELLOW Connect all YELLOW wires for synchronization.
BLUE: Touch to ground for 1 second to scroll through patterns.
